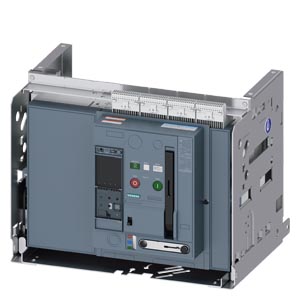

SIEMENS ACB, 3WA, WITHDRAWABLE CIRCUIT BREAKER WITH GUIDE FRAME, IEC 60947-2, FRAME SIZE 2, 4-POLES, N-POLE LEFT, IN=3200A UP TO 690V AC 50/60HZ, BREAKING CAPACITY S ICU=66/50KA AT 500/690V, TRIP UNIT ETU600 LSIG UPGRADE READY, COLORDISPLAY

Withdrawable circuit breaker with guide frame, IEC 60947-2, frame size 2, 4-poles, N-pole left, In=3200A up to 690V AC 50/60Hz, breaking capacity S Icu=66/50kA at 500/690V, Trip unit ETU600 LSIG upgrade ready , colordisplay, bluetooth and USB interface, Protection LT, ST, INST, GFx, include N-protection, (internal N-sensor available), incl. trip alarm switch (1xCO), rear connection flange, guide frame with shutter and w/o position signalling switch, with internal voltage tap on upper stab of circuit breaker, with voltage tap module VTM680 and power supply of ETU600, able to communication, integrated metering type PMF-1 Energy Efficiency, Voltage, Active energy Ea with manual and motorized operating mechanism (M) 110-127 V AC / 110-125 V DC, Storage status and ready-to- close signaling switches, Auxiliary switches 2NO+2NC, without Closing coil (CC), manual operating mechanism with mechanical closing, without Remote trip alarm reset coil (RR), without 2nd shunt trip, without 1st Shunt trip
